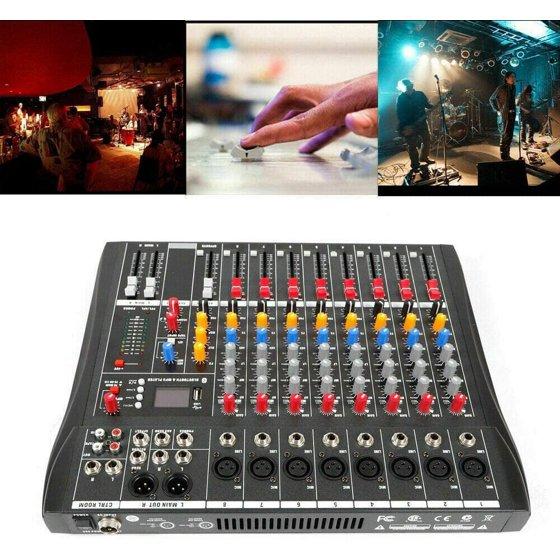

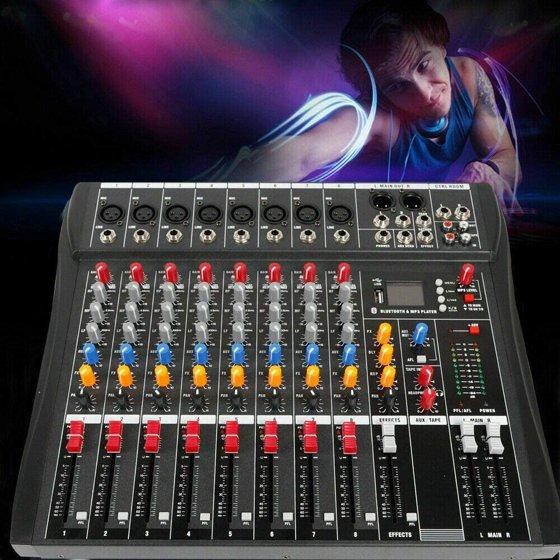

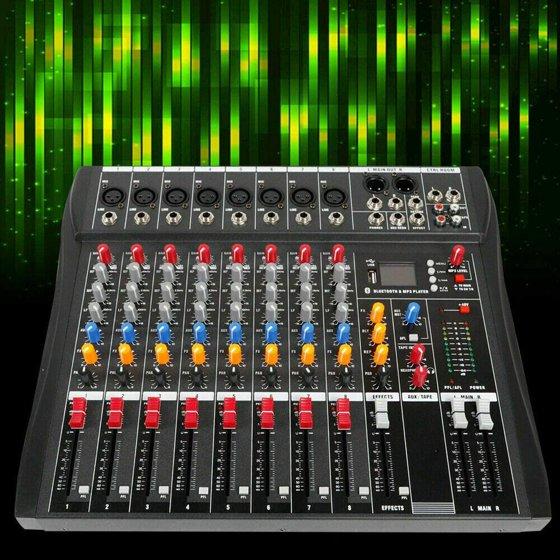

Professional Audio Mixer Sound Board Console Desk System Interface 8 Channel Digital USB Bluetooth MP3 Computer Input 48V Phantom Power Stereo DJ Studio FX
-
Available in Stock
$0.00
Count: 1
Specifications:
Input: AC 110V 50Hz 18W
Output: AC 18V X 2 350mA
Material: ABS
Color: Black&Red
Size: 400 x 340 x 37 mm
Technical Parameters:
Max Input Level: +24dBu(MIC/Line); +20dbu(other line)
Max Output Level: +26dBu(XLR); +20dBu(TRS)
Master Meters: 10 segment -24dB to CLIP
Channel Meters: 1 LED signal indication
Frequency Response: 20Hz to 30KHz 0.5dB
CMRR (MIC 1kHz): ï¼75dB
THD+N: ï¼0.01%(Channel to mix out)
Crosstalk at 1kHz: ï¼85dB(Fader/Mute shutoff); ï¼82dB(inter channel)
Noise, rms 22Hz to 22KHz:
EIN -122dBu
Residual output noise ï¼-90dBu
L/R main mix noise ï¼-82dBu
Aux mix noise ï¼-82dBu
Mono EQ:
LF, shelving,+/-15dB, 12KHz
HM, peak/dip,+/-15dB, 2.5KHz
LF, shelving,+/-15dB, 80Hz
Mono channel:
XLR balanced, pin 2 hot, 2K ohm, Sensitivity -40 to +14dBu
TRS balanced, tip hot, 10K ohm, Sensitivity -20 to +14dBu
XLR, phantom +48V
2-track return: RCA, unbalanced, 4K ohm, -2dBu
2-track send: RCA, unbalanced, ï¼75 ohm, -2dBu
L/R output: XLR unbalanced, pin 2 hot, ï¼75 ohm, +4dBu, Max.+22dBu
FX/AUX output: TRS unbalanced, tip hot, ï¼75 ohm, -2dBu, Max.+18dBu
Headphones: TRS, tip L, ring R, 30 to 600 ohm headphones recommended
Functions:
LR main mix
2 Aux sends
Recording
Responsive 3 band EQ
Individual phantom power
2-Track monitoring and re play to LR
Electronically balanced XLR outputs with +26dBu drive capability
Preamp +34dBu maximum input capability for mic or line
Digital effect processor
Metal jacks, gold-plated XLRs, sealed pots and switche
Package Included:

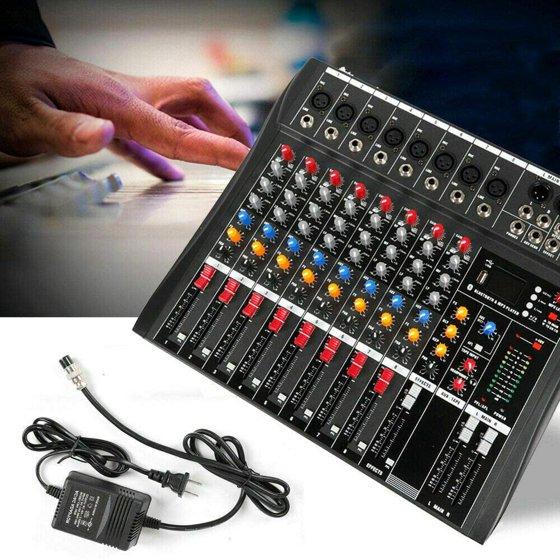

1x Mixing Console, 1x Charger, 1x User Manual
-
Multi Devices Compatibility: USB/Flash Reader /MP3 or Bluetooth device are very easy to connect this mixer to Mix & record; Built in built in controls provide friendly experience to play/pause, skip tracks and switch between modes
-
Bluetooth Wireless Audio Streaming: Cable free music streaming ability directly to the consoles; Mix all kinds of devices as smart phone to this audio mixer. Very easy to wirelessly stream all music tunes to the mixing board from Spotify or Pandora
-
Ultra-thin and Rugged Chassis: With only 1.4 inches thin design, sealed rotary controls to resist dust, great experience of touching to use this mixer. This compact mixer provides total dynamic control, is great for high quality on stage performance,premium quality crystal clear studio level quality audio playback
-
MIC + Line Inputs: Supporting XLR and unbalanced 1/4" plug with +48V phantom buttons, highly accurate LED peak level indicator,10-Segment Stereo Output Level METER and ultra musical 3 band EQ on all channels; Ultra low noise, high headroom mixer with super easy functionality for professional vocal and instrumental sound
-
This analog mixer provides accurate, crisp and clear sound quality. The extra clean sounding effect makes it ideal for live mix in occasions like live gigs, shows, stage performance, DJ events, and karaoke.
Brand
Audio mixer type
Channels
Digital/analog
Is powered
Connection
Input/output quantity
Features
Wireless
Accessories
Audio output
Manufacturer
Material
Color
Color category
Digital audio file format
Has written warranty
Volts
Model
Warranty information
